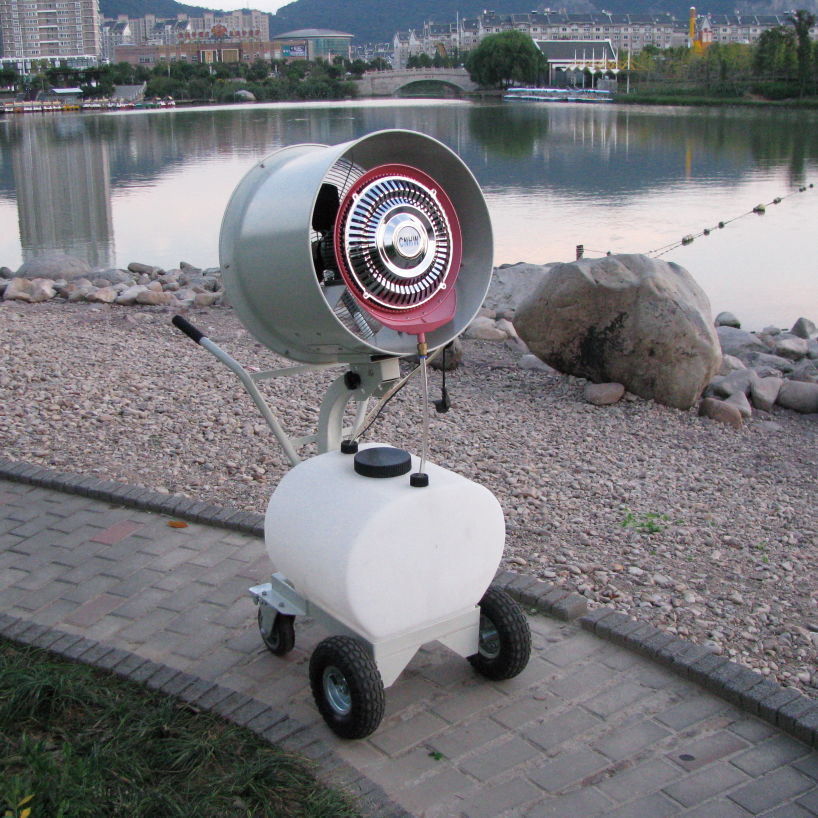

Double-motor Heavy Humidifier
Introduction
Huwei heavy humidifier adopts double motor, the speed and slow gear can be adjustable, and the bottom of the machine is equipped with wheel design, which can greatly facilitate the operation of users.
|
Technical Data of Double-motor Heavy Humidifier HW-20MC08B |
|||
| Name | Heavy mist fan | Model | HW-20MC08B |
| Airflow | 7200 M3/L | Pump Power | 30W |
| Humidified Area | 300M2 | Tank Capacity | 60L |
| Spray Direction | Manual | Supporting frame and Wheels | Yes |
| Motor Power | 600 W | BackSafety Net | Yes |
| Fan Type | Centrifugal | Net Weight | 70 kg |
| Power Supply | 220/240V 50/60 HZOr re-design | Gross Weight | 89 Kg |
| Fan/Disc Speed | 2800/1400 RPM | Overall Dimension | 550×450×1350mm |
| 20’ FCLLoading Quantity | 40 UNIT | Packing Dimension | 720×650×550mm710×560×800mm |
| 40’ GP/HQLoading Quantity | 72 UNIT | Packing | CARTON |
| Delivery Time | T/T 10 daysLC 30 days | MOQ | 10 UNITS |
| Payment Term | T/T LC | ||
Application
The heavy humidifier is ideal for:
outdoor patios, sport activities, garages, warehouses, zoos, cookouts, swimming pools, concerts, horse stables, outdoor weddings, greenhouses, receptions, amusement parks, special events , construction sites or any location that needs relief form the summer heat.
Working principle of Double-motor Heavy Humidifier
Centrifugal humidifier is the use of composite vacuum produced by the rotation of the impeller, driven by high speed motor under atmospheric pressure of the water in the water storage tank through the suction pressure to the composite atomization impeller, atomized into fine mist, will spray into tiny particles that no water (5 ~ 20 um), blow into the air again, make it can be easily absorbed by the air and the hot wet through particles in the air and water exchange, reach the purpose of the air humidification.
Our service
Standing fan quality control
1)Before the order can be confirmed final.We would strictly check the material ,color ,plugs step by step.
2)We salesman,also as a order follower, would trace every phase of production from the beginning.
3)We have a QC team, every product would be checked by them before packed.
4)We would try our best to help clients solve problem when it occurs.
Office
Factory
